LR10

10,000-lb. Capacity/Portable Low Rise Lift

Featuring an innovative sunken design and expanded platforms, this powerhouse delivers a massive 10,000‑lb capacity. The wide, stable platforms fit everything from compacts to SUVs and vans, making it ideal for tire, suspension, and body work. From the shop to the field, the LR Series works where you do.

Contact Us Now

Click to download Product Brochure

Click to download Product Manual



Categories: ,

Features

  • Lifting capacity: 10,000lbs
  • The new design dolly makes it easy to move the lift around the service bay or garage.
  • Rugged platform and hard-rubber lifting pad ensure the stable and quick lifting.
  • Dual-way drive-in ramps make full use of the space.
  • Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism.
  • 1-1/2″ and 2-3/4″ rubber pads come standard.
  • Portable design, can easily moved to the service bay.

Specifications

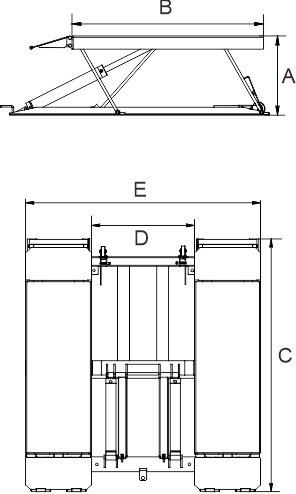

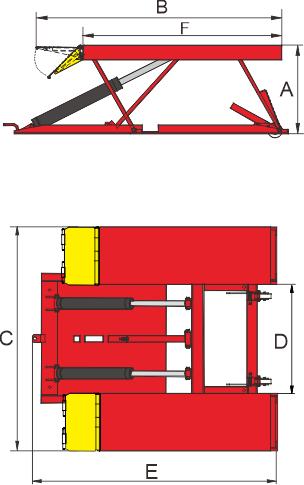

LR10 Specifications
ModelLR10
Lifting Capacity6,000 Ibs
Lifting Time35s
56s
Max. Lifting HeightA24 3/16"
Minimum Height4 1/8"
Overall Length
(not incl. Ramps)		B57 3/16"
Overall Length
(incl. Ramps)		C84 1/16"
Width between runwaysD34 3/16"
Outside edge of runwaysE77 15/16"
Gross Weight1,052 lbs
Motor110V / 1.0HP
220V / 2.0HP

Detailed Image

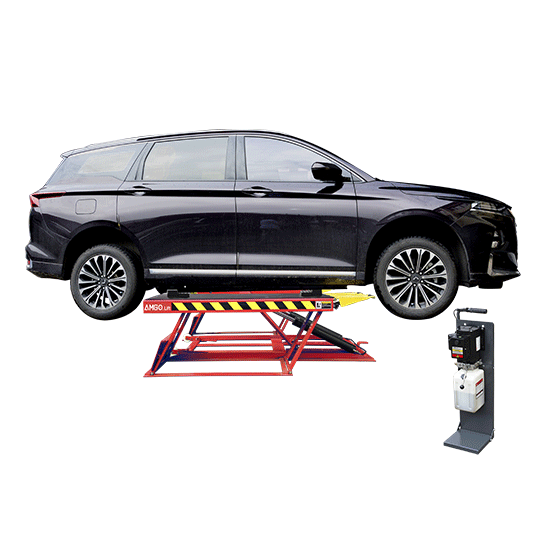

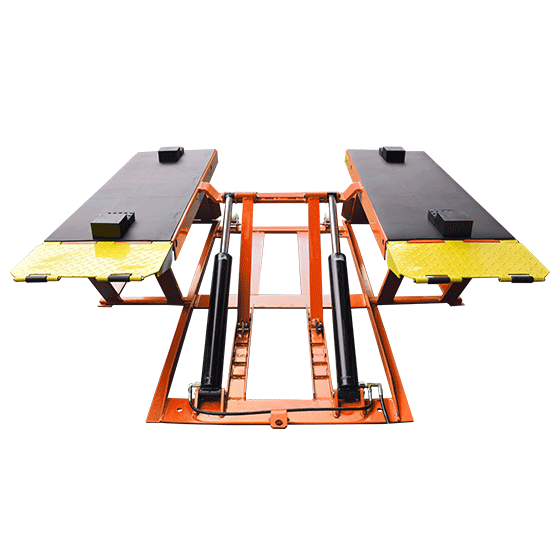

Low-profile platform accommodates a wide range of vehicles,even low chassis vehicles.

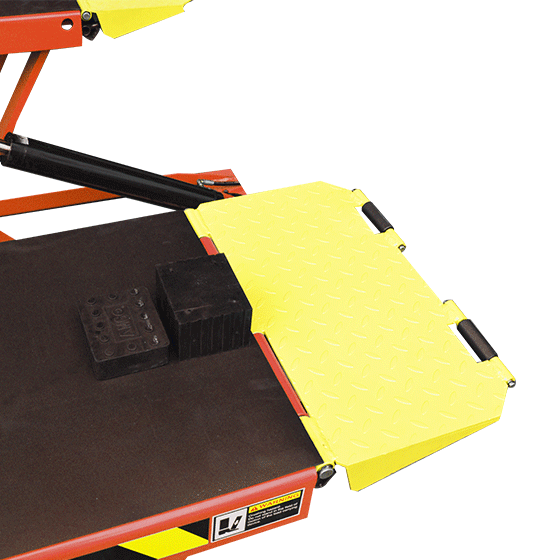

The versatile drive-in ramp can be extended as part of the platform.

Mechanical locks with multiple lock points, and an automatic gravitational lock-release mechanism.

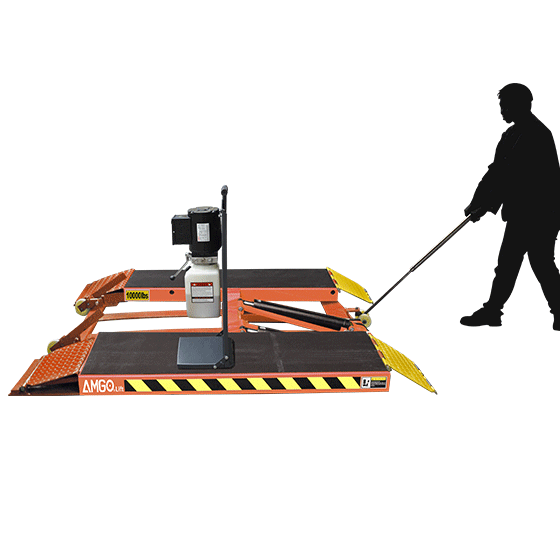

Portable design, can easily moved to the service bay.

Exclusive design detachable power unit stand & telecoping dolly.

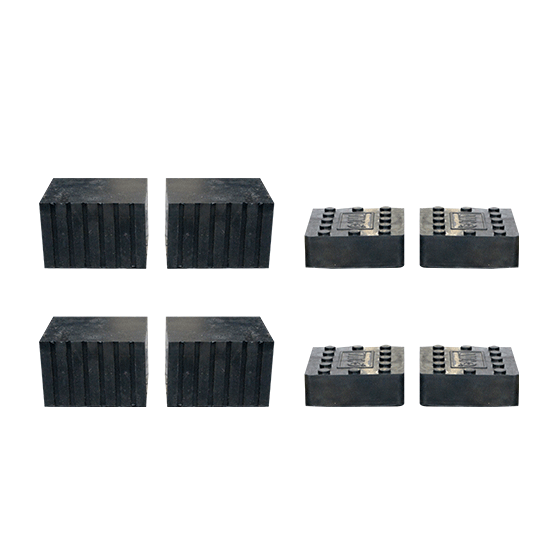

Both 1-1/2" and 2-3/4" rubber pads come standard

Shipping Information

8 units/package, packing measurement (LxWxH) : 84 7/16"x78 3/4"x86 5/8"

1 units/package, packing measurement (LxWxH) : 27 3/4”x11 3/4"x12 5/8""

Attention to forklift loading and unloading
