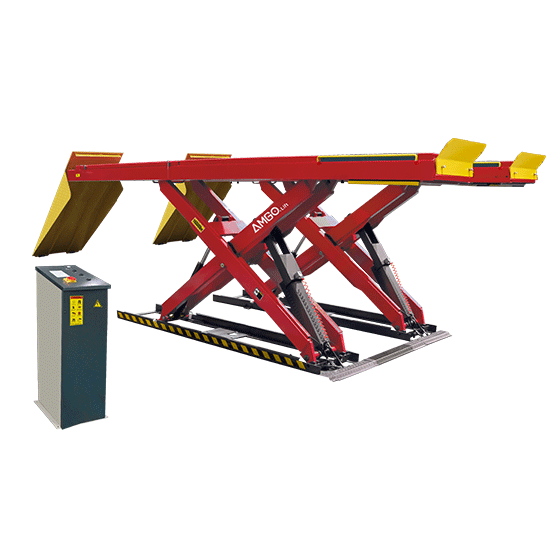

Features
• 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
• Electro-air control system, which operates the self-lock safety mechanism
• Heavy-duty design, the X swrial scissors lifts use lage tube to make the lifts stronger.
• Skid proof diamond platform
• Optional rolling jacks:
– RJ-8A: 8,000 lbs with pneumatic pump
• More choices:
Optional turnplate Kits No. 40101
Optional led lights Kits No. PX010
Optional extension Kits No. PX003
Optional airline KitsNo. PX004A

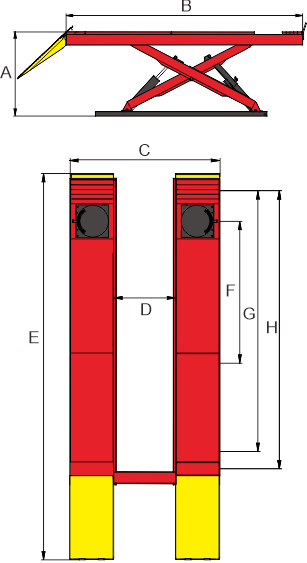

Specifications
| Model | AX-16A | |
|---|---|---|
| Lifting Capacity | 16,000 Ibs | |
| Lifting Time | 110s | |
| Max. Lifting Height | A | 72 13/16" |
| Max. Lock Height | 71 1/16" | |
| Minimum Height | 13" | |
| Runway Length | B | 213 11/16" |
| Overall Width | C | 94 1/16" |
| Width Between Runways | D | 44 7/8" |
| Overall Length (Inc. Ramps) | E | 274 3/16" |
| Min. Four Wheel Align | F | 98" |
| Max. Four Wheel Align | G | 184 1/16" |
| Max. Two Wheel Align | H | 186 5/8" |
| Gross Weight | 6,283 lbs | |
| Motor | 2.0HP |
Detailed Image

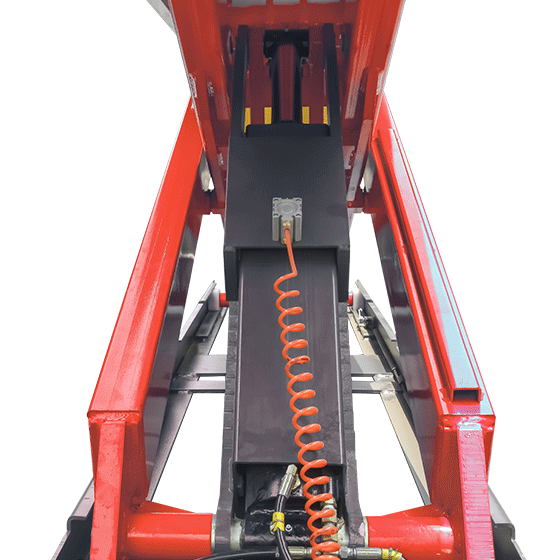

Electro-air control system, mechanical safety locks.

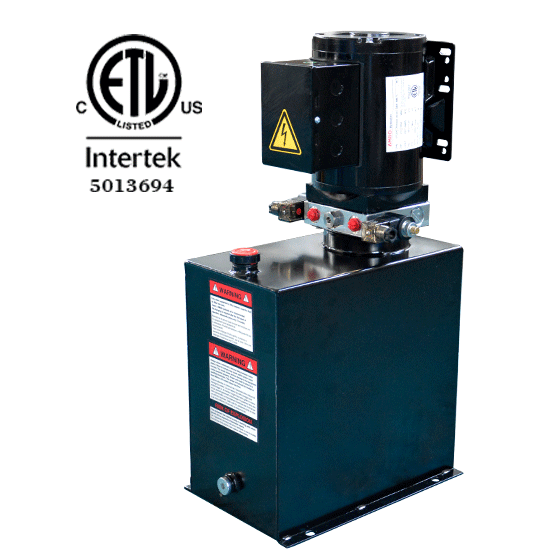

ETL certified AMGO power unit.

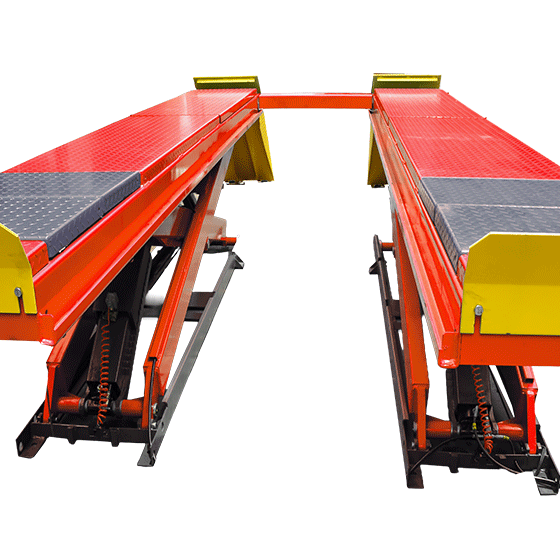

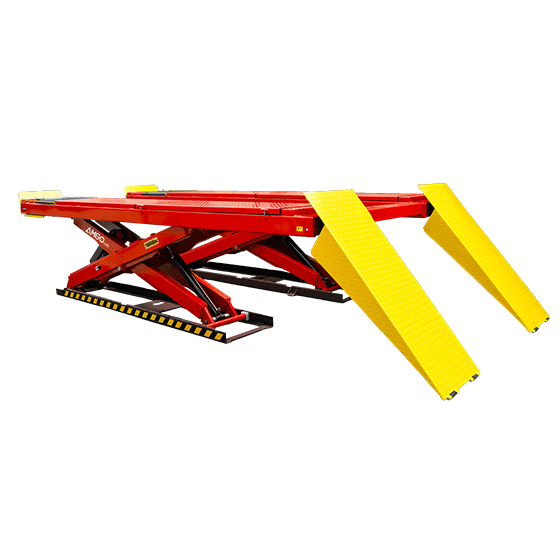

Extremely long and wide non-skid diamond platforms are capable of servicing varying wheelbase vehicles.
Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.

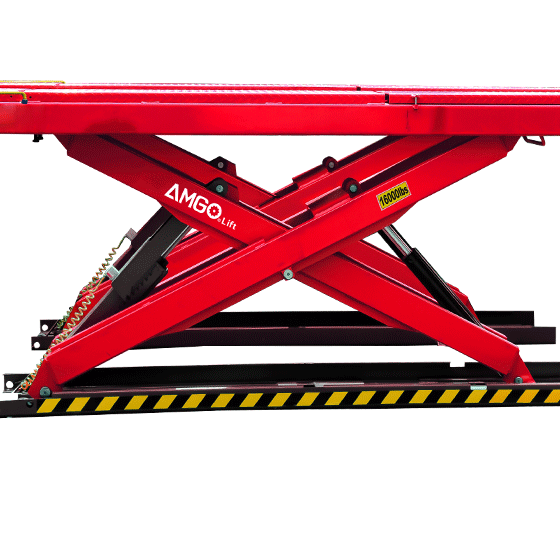

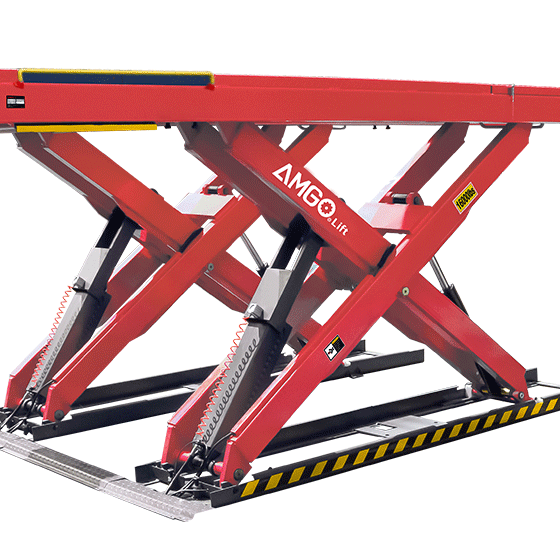

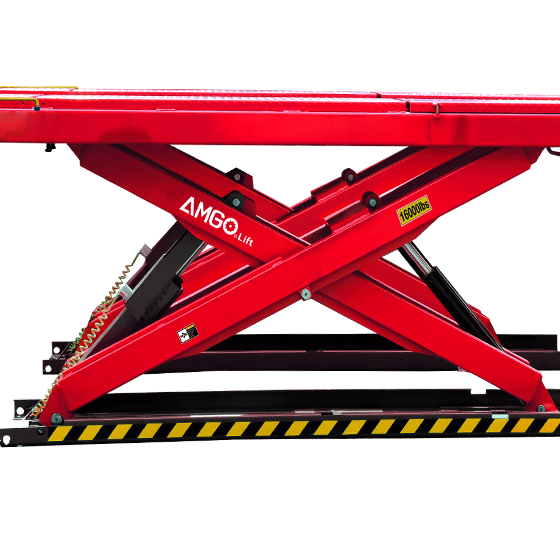

Heavy duty design with robust X sicissors made of large steel tubes to ensure strong capabilities under heavy workloads.

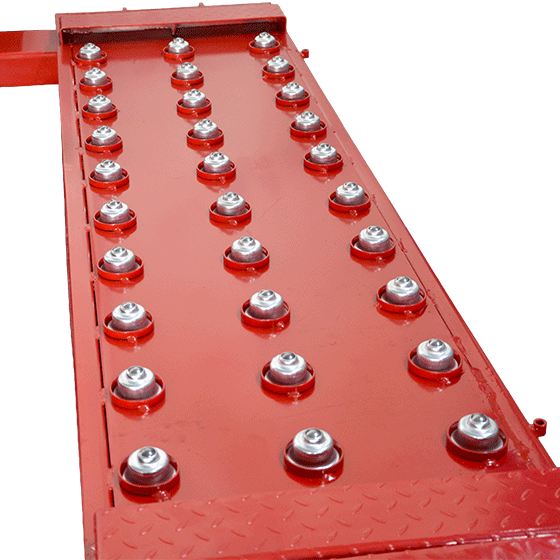

New rear-slip ball sets.
Nice design pull-out tool tray comes as standard.

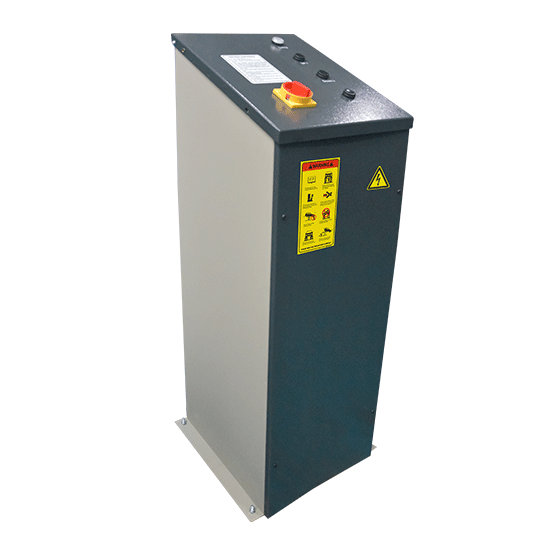

Electro-air control cabinet.

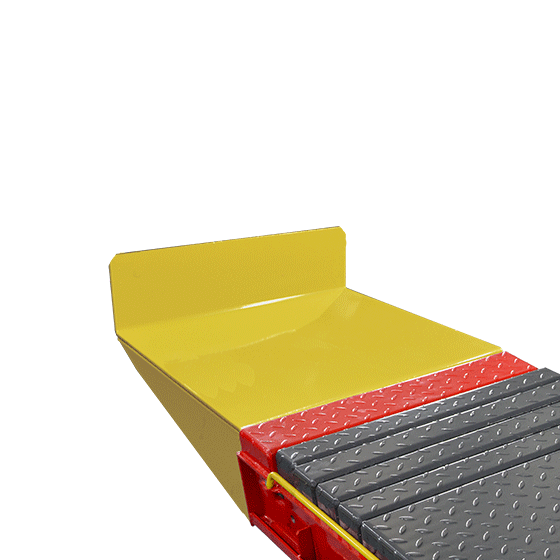

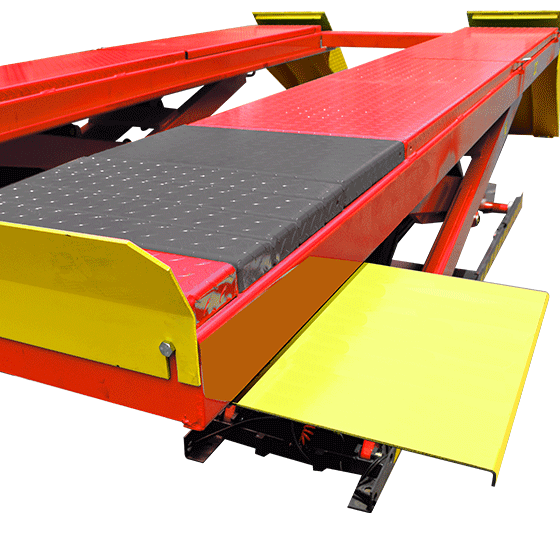

Optional: extension platform, kits no.: PX003

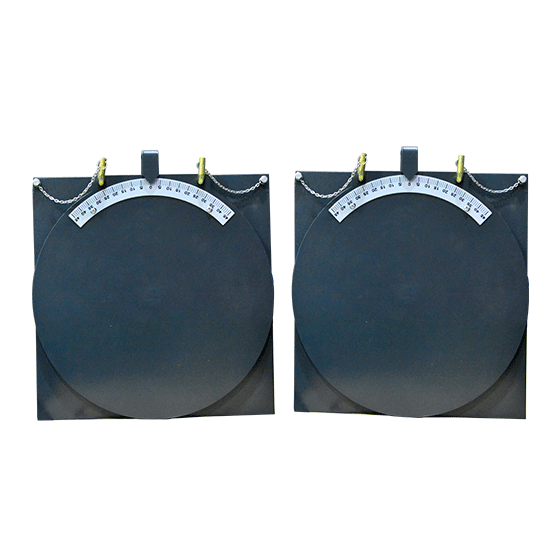

Optional Turnplate each alignment liftneed one set (two pcs.) of turnplates Kits No.:40101

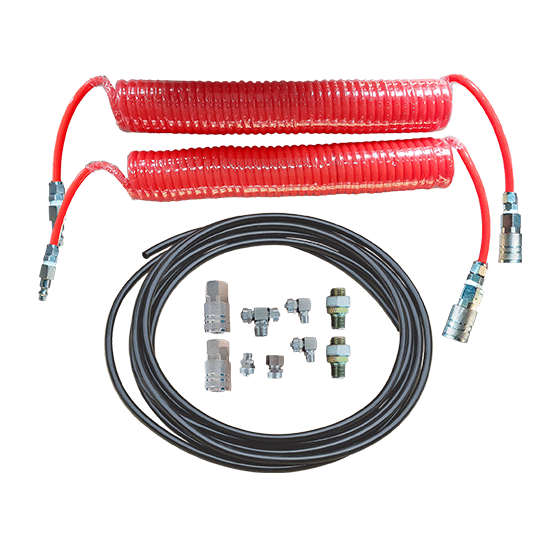

Optional air line kits (kits no.: PX004A)

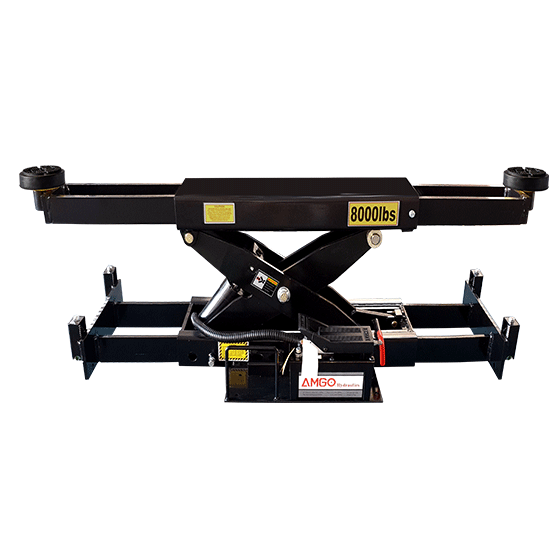

Optional rolling jacks RJ-6H:manual hydraulic type 6,000lbs; RJ-6A:pneumatic hydraulic type 6,000lbs; RJ-8A:pneumatic hydraulic type8,000lbs.
Shipping Information

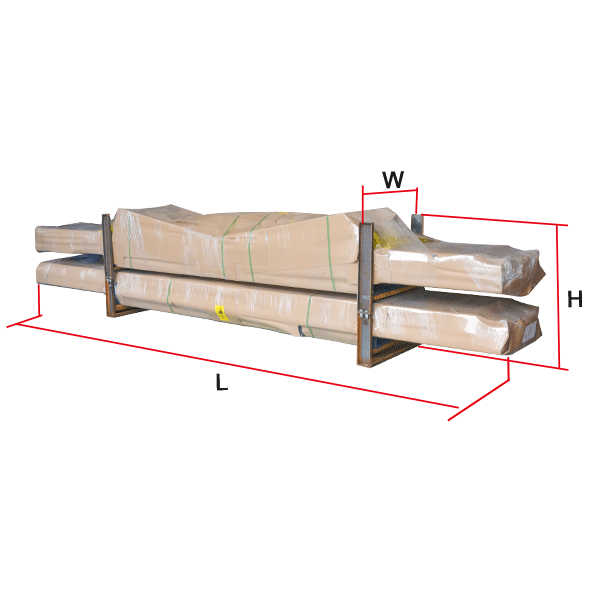

1 units/package, packing measurement (LxWxH): 218 1/2" x 29 7/8"x 39 3/4".

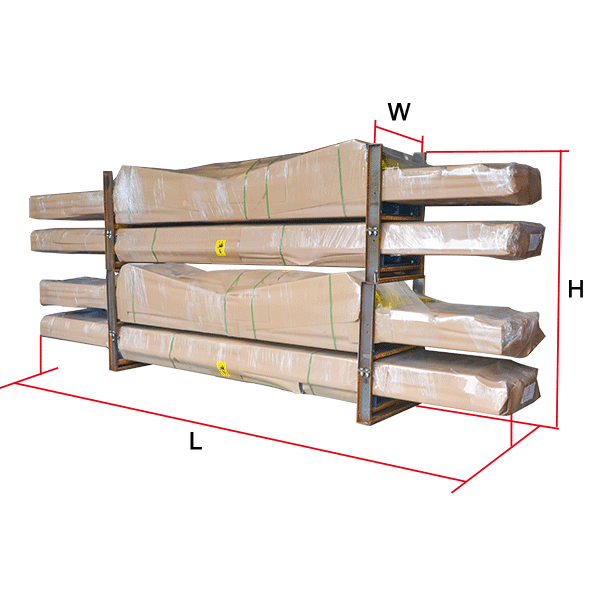

2 units/package, packing measurement (LxWxH) : 218 1/2" x 29 7/8"x 80".

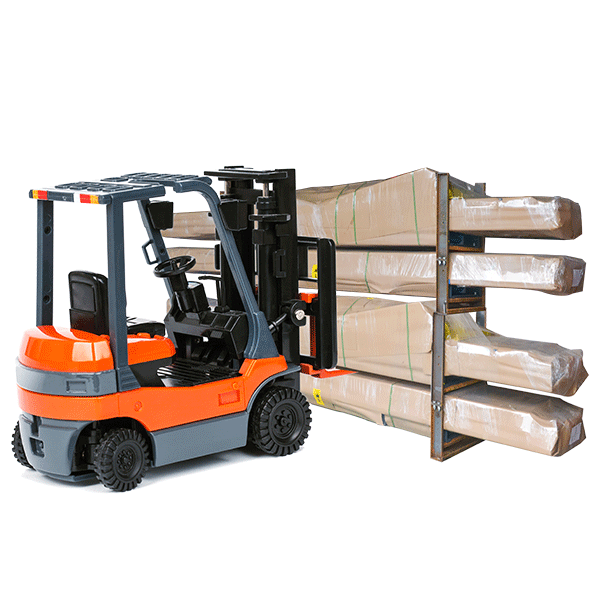

Attention to forklift loading and unloading.
