Features
● Lifting capacity: 9,000lbs;
● AMGO ETL certified power unit comes as standard;
● High quality cylinder is designed and made to a high standard;
● AMGO’s patented design concealed safety lock control device, with manual single-point lock release;
● Aero standard cables are included as standard;
● Double-
shaped columns are utilized to enhance strength;
● Non-slip platforms come with foldable drive-in ramps as standard;
● Support back to back installation to minimize space occupancy;
● Power side column can be installed at any corner;
● Extremely high lifting is suitable to park taller vehicles;
● Pull rope comes as standard;
Specifications
| Model | 409-HP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 143s(110v) 57s(220v) |
|
| Overall Length (Inc Ramps) | A | 238 1/8" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 109 5/16" |
| Width Between Posts | D | 99 5/8" |
| Max. Lifting Height | E | 88 1/16" |
| Max. Locking Height | 85 5/16" | |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Max. Underneath Height | H | 82 9/16" |
| Max. Lock Underneath Runway | 79 13/16" | |
| Drive-Thru Clearance | I | 88 7/16" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | 1,956 lbs | |
| Motor | 2.0HP(220v) 1.0HP(110V) |
Detailed Image

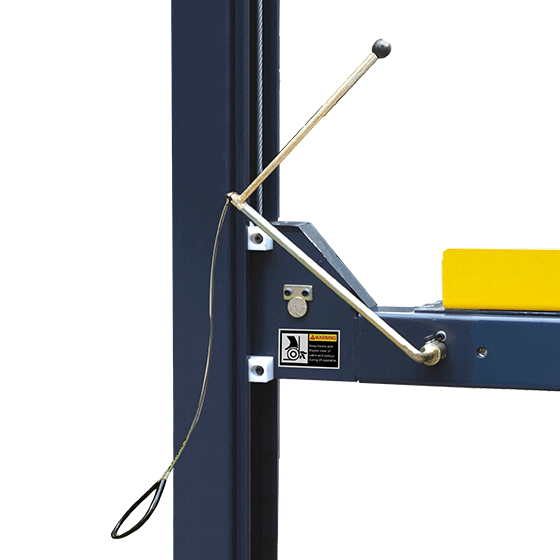

AMGO'spatented design concealed safety lock control device, with manual single point lock release.
Foldable drive-on ramps. (each lift 2 units). P/N:1104533025C-01
Double safety locks provide additional safety.
90° motor installing plate. P/N: 40802
Optional Caster kits help easily maneuver the parking lift. One set 4pcs. Kits No: 40801
Optional plastic oil tray (1 set, 4pcs) Kits No.: 40807.
Optional extended aluminum drive-in ramp. P/N: 40815, each lift needs 2 units.
Optional Adj. Jack Tray,P/N: 40816
Optional Motor Protective cover (with emergency stop switch). Kits No.: 40810
Optional rubber wheel chock P/N: 40811
Optional storage wave panels Kits No.: 40812.
Optional RJ-6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 6,000lbs.
Shipping Information
1 units/package, packing measurement (LxWxH): 202 5/8" x 22 1/16" x 29 5/16". Packed with Power Unit.
3 units/package, packing measurement (LxWxH) : 202 5/8" x 22 1/16" x 85 13/16"
